Ioruba

Ioruba transforms an Arduino Nano + 3 knobs into a tactile desktop control deck. The active stack is a Tauri 2 + React + TypeScript desktop app backed by a Rust audio layer (using pactl on Linux) and Arduino C++ firmware for the physical controller.

Current platform status Real audio control is production‑ready on Linux via pactl. macOS and Windows builds are useful for UI review, packaging checks, and demo mode, but they do not yet provide a functional audio backend.

📚 Quick links

• Releases
• Quick Start
• Hardware Setup
• Nano Setup
• Profile Examples
• Translation Guide
• PT‑BR Docs
• Support & Debugging
• Testing
• Contributing
• Funding
• Roadmap

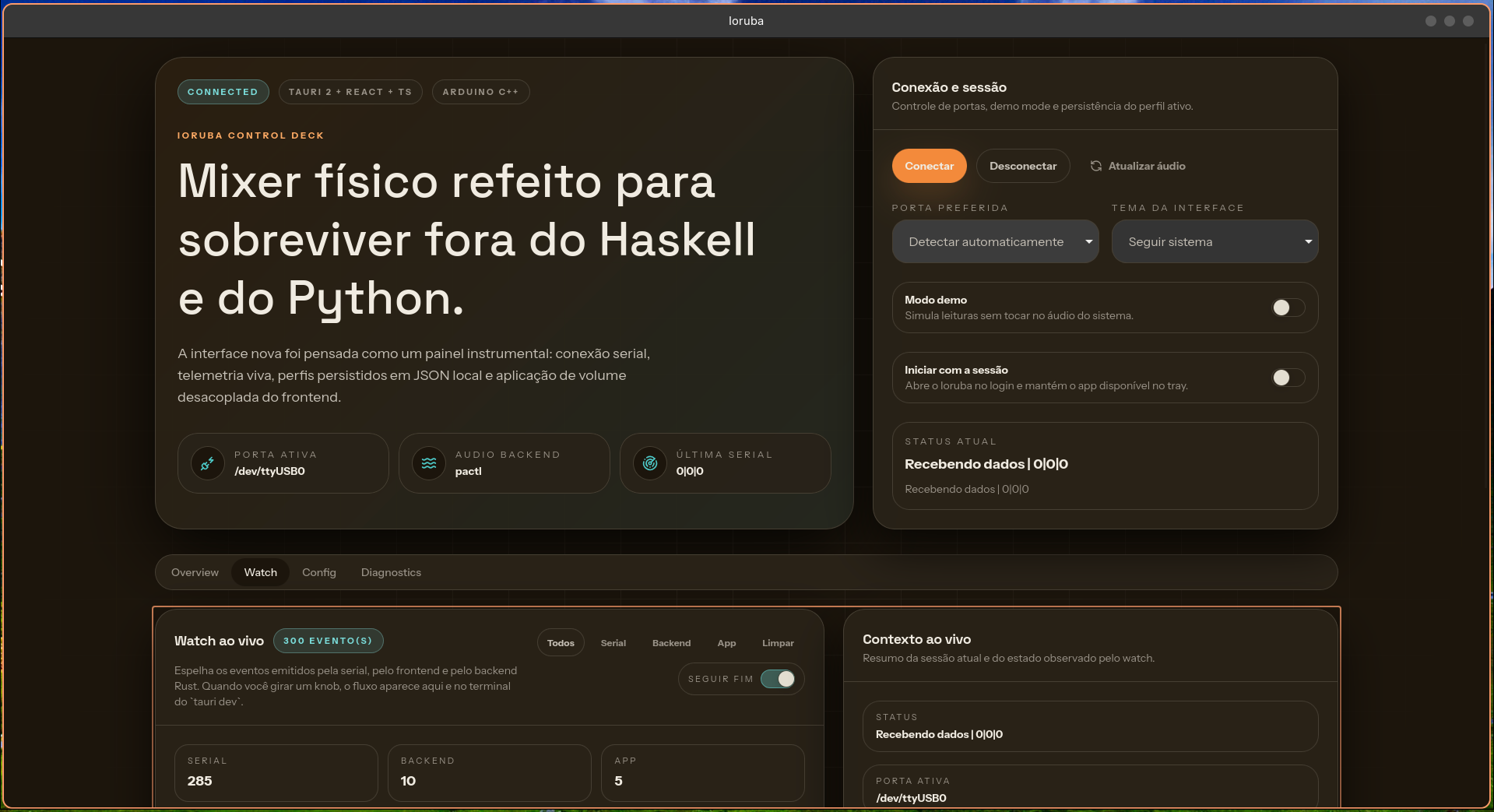

Archived screenshot – provides a visual reference for the tactile dashboard direction.

---

🎛️ Why this repository exists

The project preserves the hands‑on feel of a small mixer while modernising the software stack:

• Desktop runtime – apps/desktop (Tauri 2, React, TypeScript, Zustand)
• Firmware – firmware/arduino/ioruba-controller (Arduino Nano C++)
• Shared logic – packages/shared (TypeScript domain types, protocol parsing, runtime math)
• Linux audio backend – Rust implementation using pactl (master, application, source, sink targets)
• Persistence – JSON profiles stored in the app’s config directory
• CI – validates TypeScript, Rust, and firmware compilation
• Legacy – an archived Python/GTK prototype remains under legacy/ for historical reference

✅ What you get today

• Serial packets like 512|768|1023 (three 10‑bit values)
• Firmware handshake: HELLO board=...; fw=...; protocol=...; knobs=...
• Backward compatibility with legacy packet format P1:512
• Live telemetry and a persistent watch log inside the desktop app
• Editable JSON profiles (stored per‑platform config directory)
• Demo mode for UI validation without touching system audio
• Linux audio target handling for master, application, source, and sink
• CI for desktop/shared validation plus firmware compilation
• Tagged release workflows producing desktop bundles (deb, rpm, AppImage), firmware artifacts, and Arch packaging metadata (PKGBUILD + .SRCINFO)

🖥️ Platform support

Platform	Status	Notes
Linux	✅ Supported	Main production path: serial workflow, pactl audio backend, demo mode, hardware validation.
macOS	⚠️ Partial	Desktop shell and demo‑mode validation work; real audio control not yet implemented.
Windows	⚠️ Partial	Desktop shell and demo‑mode validation work; real audio control not yet implemented.

Note: Linux is the only platform with a production‑ready audio backend (pactl) at this time.

⚡ Fast installation

Pre‑built installers are published under the latest release: https://github.com/bernardopg/ioruba/releases/latest

Arch Linux (AUR)

# Source build
yay -S ioruba-desktop

# Prebuilt AppImage
yay -S ioruba-desktop-bin

Debian / Ubuntu / Linux Mint / Pop!_OS

curl -s https://api.github.com/repos/bernardopg/ioruba/releases/latest \
  | jq -r '.assets[] | select(.name | test("\\.deb$")) | .browser_download_url' \
  | xargs -n1 curl -LO

sudo apt install ./Ioruba_*_amd64.deb

Fedora / RHEL / CentOS Stream / openSUSE (RPM)

curl -s https://api.github.com/repos/bernardopg/ioruba/releases/latest \
  | jq -r '.assets[] | select(.name | test("\\.rpm$")) | .browser_download_url' \
  | xargs -n1 curl -LO

# If you use dnf (Fedora/RHEL):
sudo dnf install ./Ioruba-*.x86_64.rpm
# For zypper (openSUSE) or yum (older CentOS), substitute accordingly.

Any Linux distro (AppImage)

curl -s https://api.github.com/repos/bernardopg/ioruba/releases/latest \
  | jq -r '.assets[] | select(.name | test("\\.AppImage$")) | .browser_download_url' \
  | xargs -n1 curl -LO

chmod +x Ioruba_*.AppImage
./Ioruba_*.AppImage

Windows

Download from the latest release:

• Ioruba_..._x64-setup.exe
• Ioruba_..._x64_en-US.msi

macOS (Apple Silicon)

Download from the latest release:

• Ioruba_..._aarch64.dmg
• Ioruba_aarch64.app.tar.gz

Reminder: On macOS and Windows the app runs in UI/demo mode only; audio control requires Linux.

🧰 Prerequisites (for source builds)

• Node.js 22 (same major used in CI) + npm
• Rust stable + cargo
• arduino-cli
• pactl (Linux only, for audio backend)
• Git

🚀 Quick start (source)

# 1️⃣ Clone & install
git clone https://github.com/bernardopg/ioruba.git
cd ioruba
npm install

# 2️⃣ Verify the stack
npm run verify   # runs typecheck, tests, Rust checks, and desktop build

# 3️⃣ Compile firmware (optional if you already have a flashed board)
npm run firmware:compile

# 4️⃣ Launch the desktop app
npm run desktop:dev   # Vite frontend only (fast iteration)
npm run desktop:watch # Full Tauri desktop shell (serial, persistence, backend)

# 5️⃣ Hardware setup
#   - Wire the controller → see docs/guides/hardware-setup.md
#   - Flash the Nano   → see NANO_SETUP.md
#   - Example profiles → docs/guides/profile-examples.md

What to confirm when the app opens

1. The app detects serial ports (or uses your preferred port).
2. The status card progresses through connection states (not stuck on “idle”).
3. The runtime receives the firmware handshake (HELLO …) alongside knob frames.
4. The Watch tab shows frames like 512|768|1023.
5. Turning knobs moves the telemetry chart.
6. The active profile is saved as JSON and survives restarts.
7. Clicking Atualizar áudio refreshes the Linux audio inventory.
8. Knobs control the configured targets (master volume, apps, microphone, etc.).

Default profile mapping:

Knob	Default label	Target
1	Master Volume	Default output / master volume
2	Applications	Spotify, Google Chrome, Firefox
3	Microphone	Default microphone input

📂 Where the app stores data

The desktop app persists two files in the platform‑specific config directory:

• ioruba-state.json – active profile and runtime state
• ioruba-watch.log – structured watch events (auto‑trimmed to ~1 MiB)

OS	Path
Linux	~/.config/io.ioruba.desktop/
macOS	~/Library/Application Support/io.ioruba.desktop/
Windows	%APPDATA%\\io.ioruba.desktop\\

🧰 Common npm scripts

Script	Description
npm run verify	Full validation: typecheck, tests, Rust, desktop build.
npm run desktop:dev	Starts the Vite frontend (UI work).
npm run desktop:watch	Starts the full Tauri desktop shell (development).
npm run desktop:icons	Regenerates desktop/icon assets from app-icon.svg.
npm run desktop:tauri:build	Builds the Tauri app locally (no installers).
npm run firmware:compile	Compiles the Arduino Nano firmware.
npm run rust:test	Runs the Rust backend tests.
npm run rust:audit	Audits the Rust lockfile (includes local glib backport).

🗂️ Repository map

Path	Purpose
apps/desktop	Tauri 2 desktop app, React UI, Zustand state, telemetry dashboards.
apps/desktop/src-tauri	Rust commands (persistence, watch logging, Linux audio control).
packages/shared	Shared domain types, defaults, runtime math, protocol parsing.
firmware/arduino/ioruba-controller	Arduino firmware for Nano‑compatible boards.
docs/guides	Practical setup guides (hardware, Nano, profiles, translations).
docs/migration	Migration planning and parity audit material.
legacy	Archived Python/GTK prototype and historical leftovers.
docs/debug/support.md	Support playbook for serial, audio, and profile‑debug issues.
TESTING.md	Automated checks, smoke tests, release validation matrix.

📚 Documentation map

Document	When you need…
QUICKSTART.md	Fastest path from zero to a running app (Linux).
NANO_SETUP.md	Flashing and validating the Arduino Nano.
docs/guides/hardware-setup.md	Wiring the physical controller (potentiometers, breadboard/enclosure).
docs/guides/profile-examples.md	Ready‑to‑paste JSON profile samples and Linux target‑matching rules.
docs/guides/translation-guide.md	How translations work in the desktop app and validation steps.
docs/translations/pt-br/README.md	Portuguese translation index for docs and root manuals.
docs/debug/support.md	Troubleshooting serial, audio, and profile‑related issues.
TESTING.md	Automated checks, smoke tests, and release validation.
docs/migration/logic-audit.md	Parity coverage with the archived Python/GTK implementation.
CONTRIBUTING.md	Guidelines for contributing code, docs, translations, etc.
FUNDING.md	How to support the project (GitHub Sponsors, Buy Me a Coffee, etc.).
TODO.md	Roadmap and upcoming features.

🗃️ Legacy archive

The repository retains one archived implementation for historical reference:

• legacy/arduino-audio-controller

Deeper migration context lives in docs/migration. The active product surface resides in:

• apps/desktop
• packages/shared
• firmware/arduino/ioruba-controller

📜 License

MIT © Bernardo Gomes
